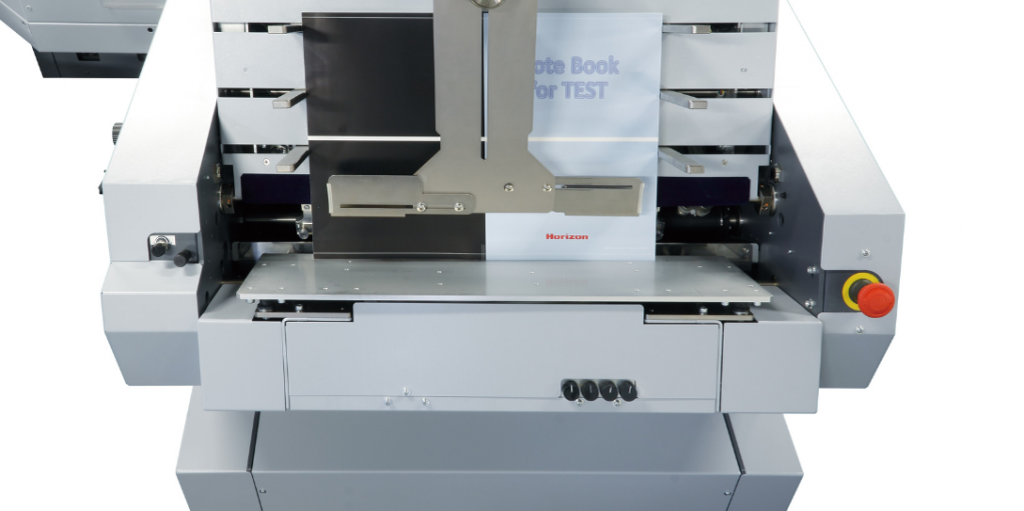

SB-09 Perfect Binder

The Standard Horizon SB-09 nine-clamp perfect binder features automated operation, push-button simplicity, and high-quality production perfect binding.

  • Key features: A 10.4″ intelligent color touch-screen control console, automatic air-suction cover feeder that handles a wide range of cover materials without marking, automated in-line cover scoring, and job programming.
  • High efficiency: The SB-09 is designed for single-person production of up to 4,000 books per hour.
  • In-line trimmer: The SB-09 can be run as a stand-alone binder or as a binding system with in-line three-knife trimming when connected to the HT-110 Three-knife Trimmer.

Have Questions?

  • This field is for validation purposes and should be left unchanged.

Book Size Max  400 x 280 mm (15.7″ x 11.0″)
Book Size Min 148 x 105 mm (5.9″ x 4.2″)
Book Thickness 1 to 45 mm (0.04″ to 1.77″)
Cover Size Max 400 x 660 mm (15.7″ x 25.9″)
Cover Size Min 135 x 220 mm (5.4″ x 8.7″)
Cover Weight Range Normal: 82 to 302 gsm / Coated: 105 to 348 gsm
Production Speed Max 4,000 books/hr
